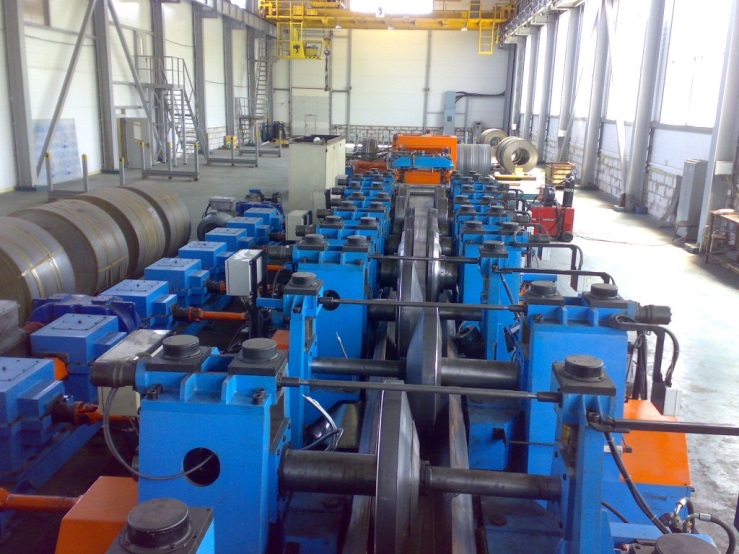

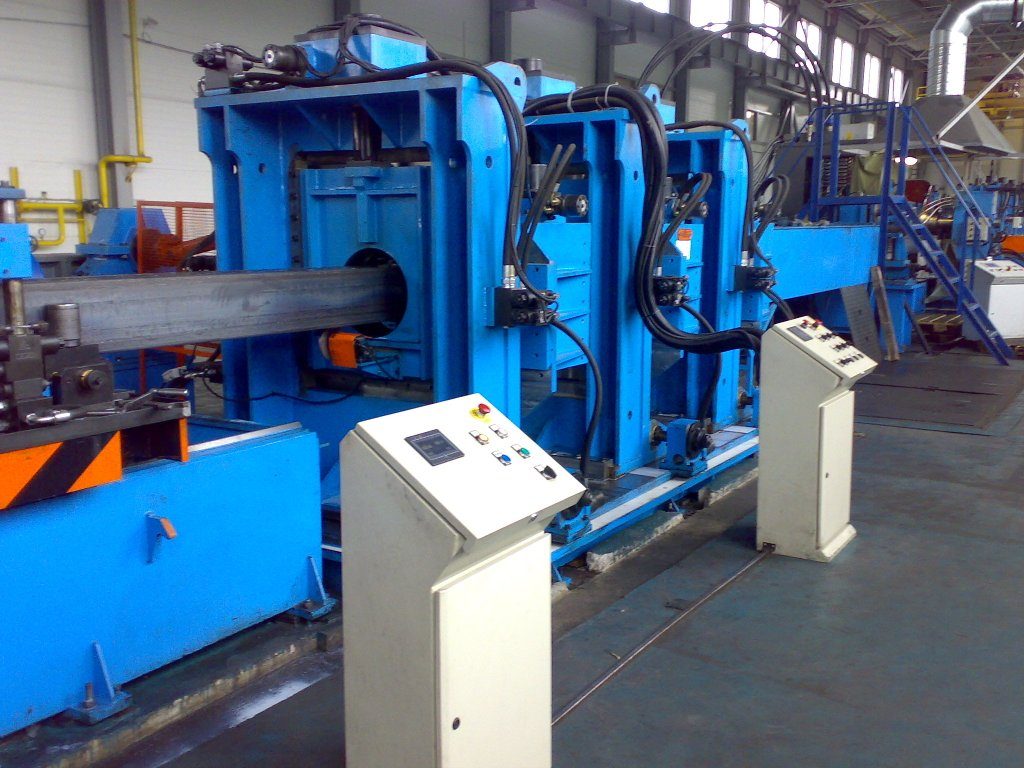

Tube Mill Lines

For electro-welded seam types of SQUARE AND RECTANGULAR HOLLOW SECTIONS made by method of DIRECT FORMING of initial steel material.

Line’s functions: new method of square and rectangular hollow sections production.

Customer who use these lines:

  • Save about 3-8% of material compared with classic lines.
  • Save time for roll changing depending on the requires section dimensions. A PLC is used to adjust all rolls positions.

Main Direct Forming Line Range technical data:

  • Material thickness range, mm 2-6 / 3-8 / 4-10
  • Coil weight range, ton: 10 / 15

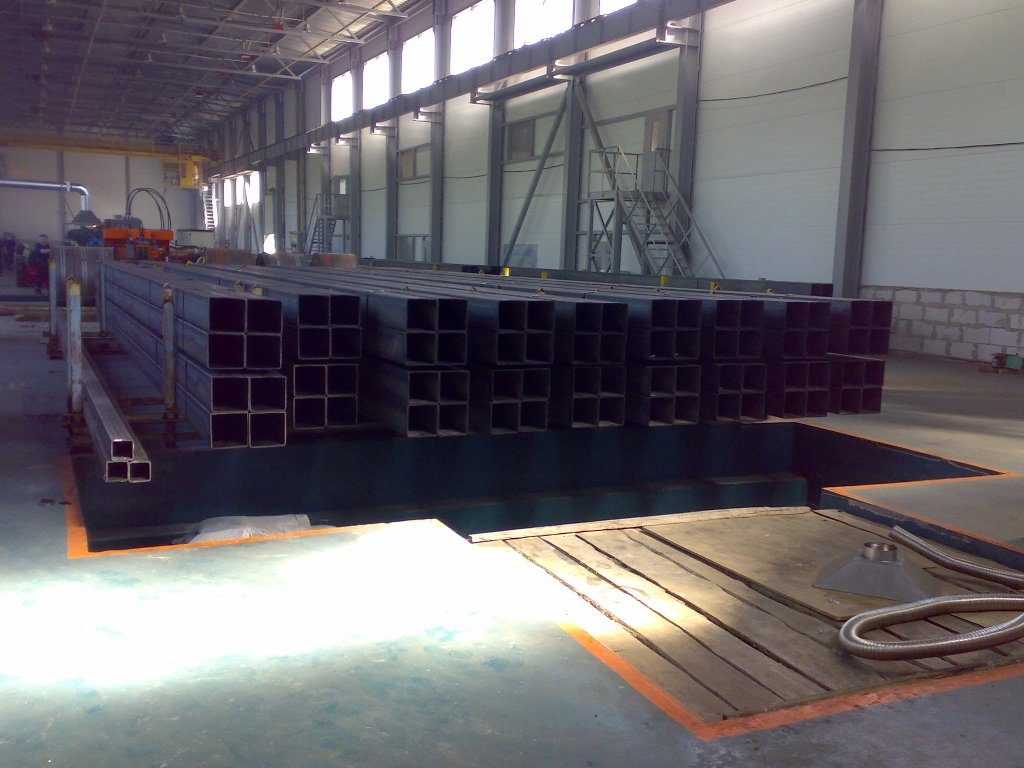

  • Square (and rectangular) sections range:
    • From 80x80x2mm to 200x200x6mm
    • From 100x100x3mm to 250x250x8mm
    • From 140x140x4mm to 300x300x10mm
  • Working speed range, m/min: 0-40
  • Ready product length, m: 4 / 6 / 12
  • Necessary time for sections dimensions changing, hours: 1,5-2

For electro-welded ROUND TUBES
Line application: classical lines to produce seamed round tubes.

Main technical data:

Thickness,
min – max
mm
Round tubes,
min – max
mm
Square tubes,
min – max
mm
Rectangular tubes,
min – max
mm
Max line speed,
m/min
1 ~ 4 21 – 60 20×20 – 50×50 20×15 – 60×40 120
1 ~ 4,5 26 – 76 20×20 – 60×60 25×15 – 80×40 120
1,5 ~ 6,4 34 – 114 25×25 – 90×90 30×20 – 120×60 100
1,5 ~ 6,4 49 – 127 40×40 – 100×100 50×30 – 150×50 90
1,2 ~ 5,5 60 – 141 50×50 – 110×110 60×40 – 120×100 85
1,5 ~ 6,4 60 – 141 50×50 – 110×110 60×40 – 120×100 80
1,5 ~ 6,4 76 – 168 60×60 – 130×130 80×40 – 140×120 60
2 ~ 8,2 76 – 168 60×60 – 130×130 80×40 – 140×120 60
2 ~ 8,2 89 – 219 75×75 – 150×150 100×50 – 200×100 40
2,5 ~ 10 89 – 219 75×75 – 150×150 100×50 – 200×100 35
2 ~ 6,4 101 – 273 80×80 – 200×200 100×60 – 250×150 40
2,5 ~ 8,2 114 – 273 90×90 – 200×200 120×60 – 250×150 35
3 ~10 114 – 273 90×90 – 200×200 120×60 – 250×15030
